Projector

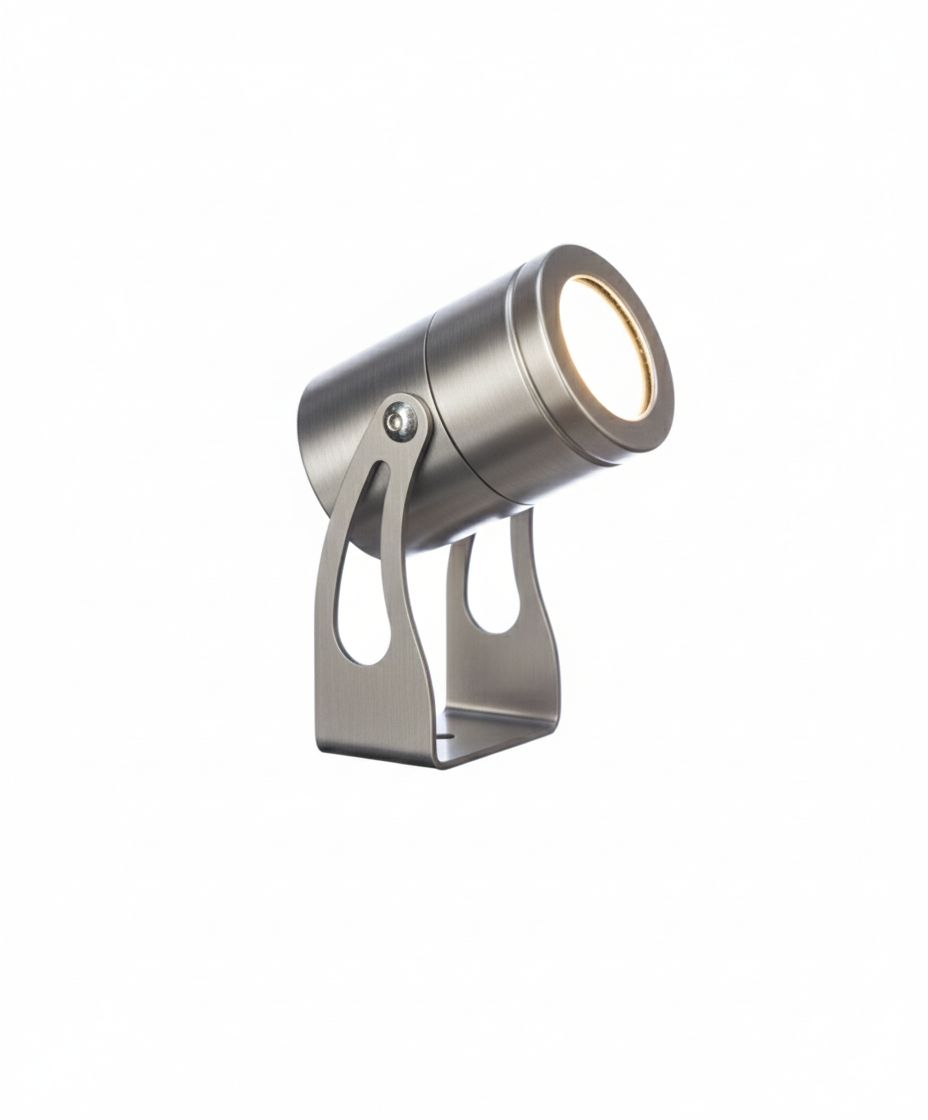

TENO-M 68
6.5W , IP68 , IK08
COMPOSE CODE
TYPOLOGY
Projector
INSTALLATION POSITION
wall, ceiling and ground mounting
MATERIAL
Stainlees steel body , Satanized stainless steel bracket
GeneraL INFORMATIon
POWER SUPPLY
24VDC
C.C
230VAC
Beam angles
8°
36°
25°
40°
40x15°
Diffused
LED COLORS
2200K
2700K
3000K
4000K
MACADAM STEP
3-Step
Weight
0.33kg
Dimming
ON/OFF
CRI
>90
Ambient Temperature
50°C
POWER CONSUMPTION
6.5W
MATERIAL
Stainlees steel body , Satanized stainless steel bracket
diffuser
Nominal Lumens
4000k 641 LM
Finishing
Stainless Steel
WALKOVER
No
Drive over
No
DOWNLOAD
INSTRUCTIONS
DATA SHEET
LDT PHOTOMETRY
IES PHOTOMETRY
TEST REPORTS
TEST REPORTS
TEST REPORTS
TEST REPORTS
TEST REPORTS
Accessories
HC
MS
SP
TMSH
No items found.
COMPOSE CODE
TENO-M 68
BEAM ANgle
8°
36°
25°
40°
40x15°
Diffused
LED COLORS
2200K
2700K
3000K
4000K
POWER SUPPLY
24VDC
C.C
230VAC
DIMMING
ON/OFF
ANTI-VANDAL
No items found.
FINISH
Stainless Steel
CABLE
50 CM
5M
10M
15M
HONEYCOMB
Honey Comb
