Recessed

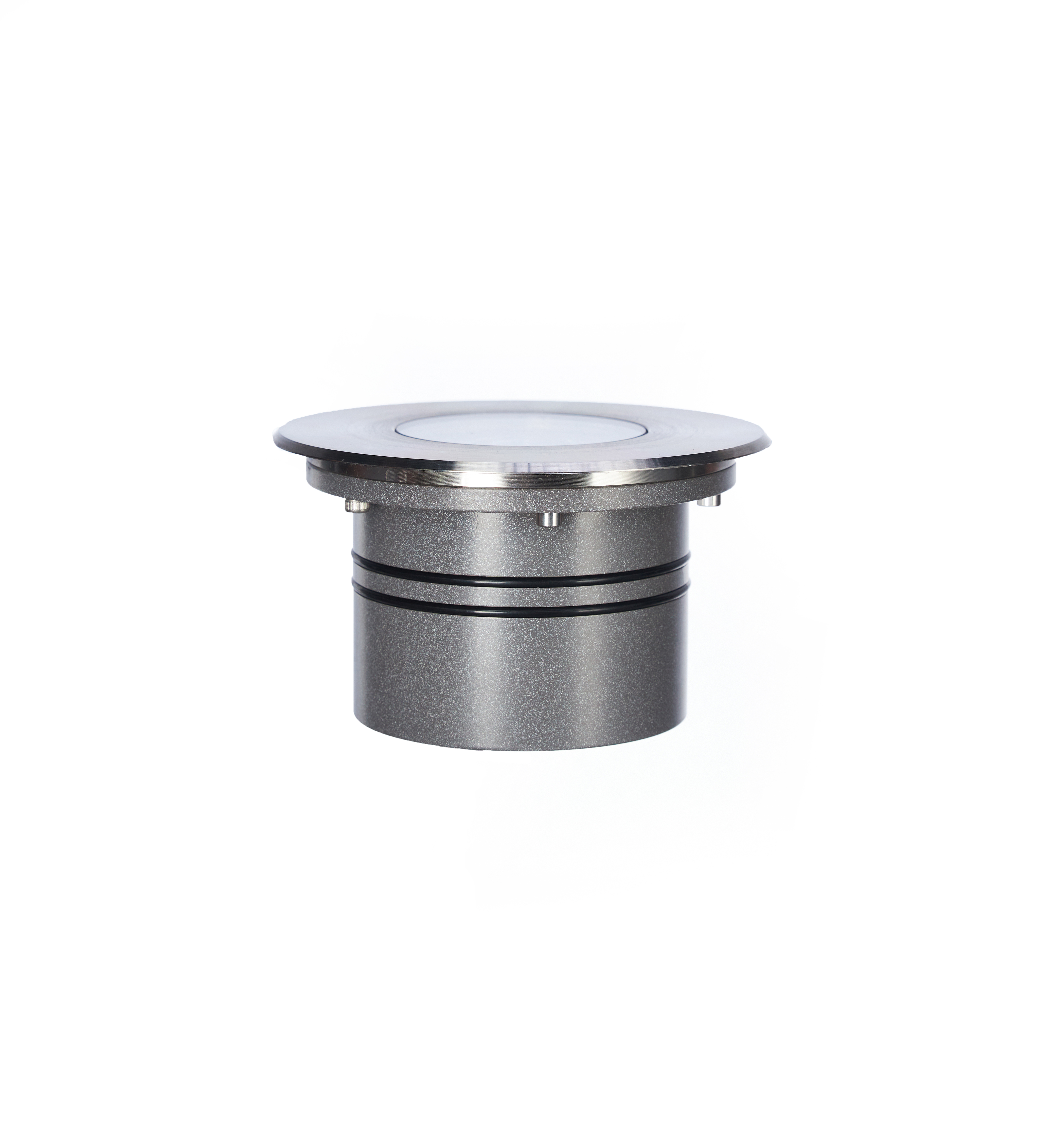

NEXIS-XL 24V

IP67 IK09
COMPOSE CODE
TYPOLOGY
Recessed
INSTALLATION POSITION
In Ground
INSTALLATION LOCATION
Outdoor

GeneraL INFORMATIon

POWER SUPPLY
24VDC
Beam angles
13°
18°
24°
36°
60°
60x25°
Asymmetric
Diffused
LED COLORS
2700K
3000K
4000K
2200K
MACADAM STEP
3-Step
Weight
1.4KG
Dimming
ON/OFF
CRI
>80
Ambient Temperature
50°C
MATERIAL
Anticorodal aluminum body , Aluminum or AISI 316L stainless steel trim
diffuser
Nominal Lumens
929 lm (2700k), 987 lm (3000K), 1016 lm (4000K)
Finishing
Anodized Aluminium
Black
Green
Silver
Stainless Steel Trim
Steel Blue
Steel Bronze
White
WALKOVER
Yes
Drive over
Yes

Accessories

NXHB

Polypropylene injected sleeve, Black color

HC

No items found.

COMPOSE CODE

BEAM ANgle
LED COLORS
POWER SUPPLY
DIMMING
FINISH
CABLE
HONEYCOMB
